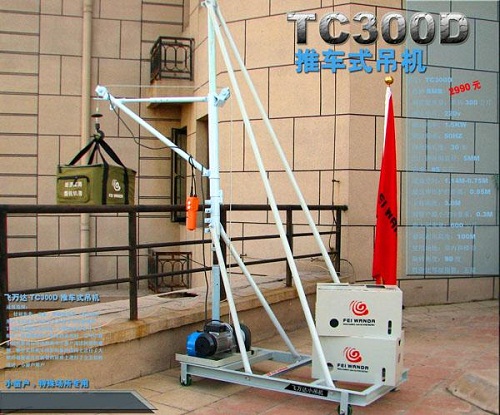

TC300D type trolley type small crane
Wanda TC300D type trolley type small crane
TC300D type fly for a few small windows user northeast, northwest Xinjiang region Wanda developed in 2006 F3A type small crane, small crane on the structure of the machine is not only a bold and innovative material on the machine were full Improved orientation. Particularly suitable for small windows user, multi-function sophisticated materials.

Model: TC300D
Price RMB: 2980
Technical parameters:
Lifting capacity: 300 kg single hook
Rated voltage: 220v
Rated power: 1.3KW
Rated frequency: 50HZ
Rope length: 27 m
Factory rope diameter: 5 mm
Weight: 85 kg
Indoor installation height: 1.5M-3.2M
Furthest out of the window length: 0.95M
Retracted window within the shortest length: Back
The minimum working space: 0.35M
Maximum weight: 300 kg
Maximum lifting height: 100M
Bracket Weight: 55 kg
The product patent number: 200720173508.7

Cost level: four-star
Scope:
Users fly against some of the northeast, northwest Xinjiang region Wanda small windows in 2009 and developed an unprecedented TC300D type trolley crane, it has four wheels at the bottom of the installation, when the heavy lifting on the specified height, It can be small crane into the rear of this small window to determine the arm's not the problem. trolley crane on the structure of the machine is not only a bold and innovative material on the machine a full range of improvements.
